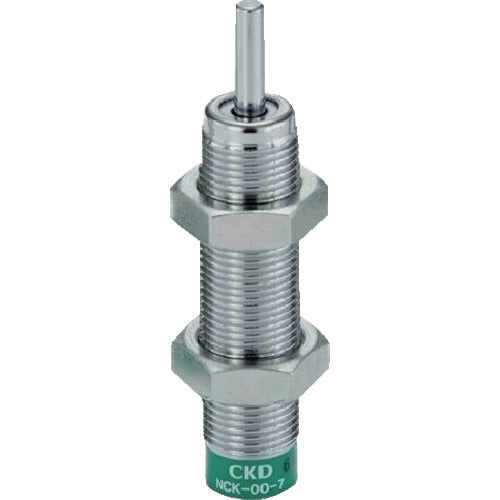

CKD Shock Killer Basic Type NCK-00-1.2 1 pc

Catalog number: NCK-00-1.2 Features: ●An impact buffer device ideal for stopping workpieces with thrust at low and medium speeds. ●Compact yet large energy absorption, high space efficiency. ●Simple installation. ●Adopts the slit orifice method, which was considered difficult to achieve, to achieve high absorption capacity at low speeds and linear soft stopping. Applications: ●As an impact buffer device when stopping workpieces. Specifications: ●Stroke (mm): 10 ●Impact speed (m/s): 2.0 ●Thread size: M12 x 1.0 ●Type: Basic type ●Maximum absorbed energy (J): 12 ●Ambient temperature -10 to 80°C ●Maximum impact speed 2.0m/s Caution: ●The shock killer's absorption capacity changes depending on the speed and ambient temperature.
