CKD Cylinder Switch K Series Contact 2-Wire Type SW-K0H3 1 pc

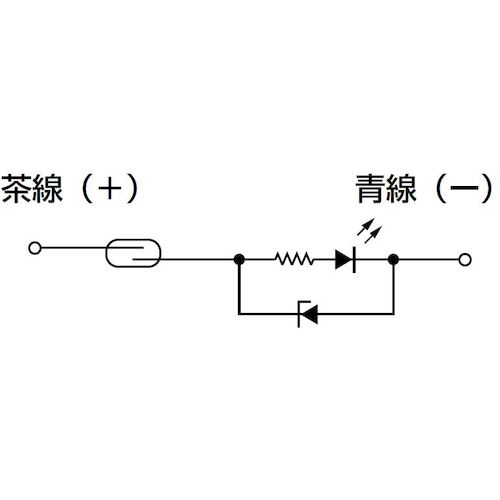

Catalog number: SW-K0H3 Features: ● Small cylinder switch. Applications: ● For detecting the position of pneumatic cylinders. ● For programmable controllers and relays. Specifications: ● Lead wire extraction: Straight ● Load voltage (V): DC12/24, AC110 ● Lead wire length (m): 3 ● Indicator light: Red ● Internal voltage drop (V): 3 or less ● Leakage current (mA): 0 ● Applicable cylinder: SMG/STR2 ● Contact 2-wire type ● 1-color display type ● Lead wire extraction direction: Straight type ● Lead wire: Oil-resistant vinyl cabtyre cord ● Load current: 5 to 50mA (load voltage: DC12/24V), 7 to 20mA (load voltage: AC110V) ● Indicator light: Red LED (lights when ON) ● Protection structure: IEC standard IP67, JIS C0920 (waterproof type), oil-resistant ● Ambient temperature: -10 to 60°C Caution: ● Contact protection measures may be required depending on the conditions of use (please check the manufacturer's catalog for details).
