CKD Cylinder Switch K Series Non-Contact 2-Wire 2-Color Display SW-K2YH 1 Piece

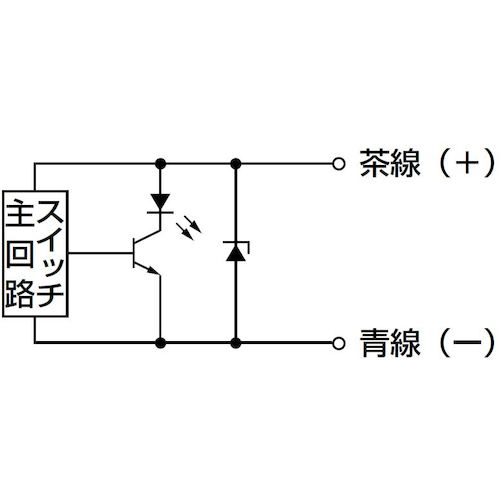

Catalog number: SW-K2YH Features: ●Compact cylinder switch. Applications: ●For detecting the position of pneumatic cylinders. ●For programmable controllers only. Specifications: ● Lead wire extraction: Straight ● Load voltage (V): DC10-30 ● Lead wire length (m): 1 ● Indicator light: Red/Green ● Internal voltage drop (V): 4 or less ● Leakage current (mA): 1 or less ● Compatible cylinders: SMG/STR2 ● Non-contact 2-wire type ● 2-color display type ● Lead wire extraction direction: Straight type ● Lead wire: Oil-resistant vinyl cabtyre cord ● Load current: 5-20mA (Load voltage: DC10-30V) ● Indicator light: Red/green LED (lights up when ON) ● Protection structure: IEC standard IP67, JIS C0920 (waterproof), oil-resistant ● Ambient temperature: -10 to 60°C Note: ● The maximum load current of 20mA is at 25°C. If the ambient temperature when the switch is used is higher than 25°C, the load current will be lower than 20mA (5-10mA at 60°C).
