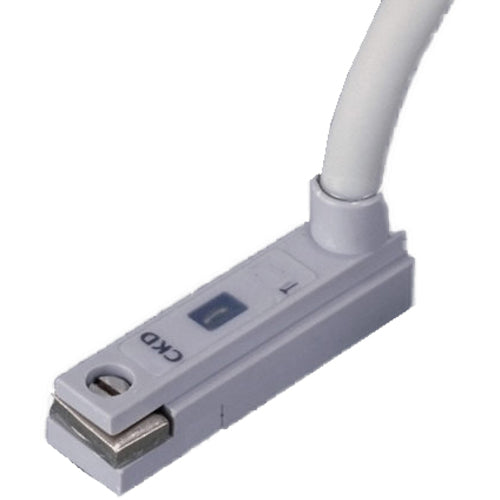

CKD Cylinder Switch T Series Non-Contact 2-Wire 2-Color Display SW-T2WV 1 Piece

Catalog number: SW-T2WV Features: ● A general-purpose cylinder switch that can be installed on many cylinders. Applications: ● For detecting the position of pneumatic cylinders. ● For programmable controllers only. Specifications: ● Lead wire outlet: L-shaped ● Load voltage (V): DC24 ±10% ● Lead wire length (m): 1 ● Indicator light: Red and green ● Internal voltage drop (V): 4 or less ● Leakage current (mA): 1 or less ● Applicable cylinders: Standard type (CAC4/CKV2/CMA2/CMK2/HCM/JSC3/JSC4/JSG/JSK2/JSM2/LCG/LCR/LCW/LCX/MRG2/MRL2/RCC2/RCS2/RRC/SCA2/SCG/S (CM/SCP※3/SCS2/SRM3/SSD/SSD2/SSG/STG/STS/STL/STK/UCA2/UCAC2/ULK/Hand/Chuck)●Non-contact 2-wire type●2-color display type●Lead wire extraction direction: L-type●Lead wire: Oil-resistant vinyl cabtyre cord●Load current: 5 to 20mA (Load voltage: DC24V±10%)●Indicator light: Red/green LED (lights up when ON)●Protection structure: IEC standard IP67, JIS C0920 (waterproof), oil-resistant●Ambient temperature: -10 to 60°C Note:●The maximum load current of 20mA is at 25°C. If the ambient temperature when the switch is used is higher than 25°C, the load current will be lower than 20mA (5 to 10mA at 60°C).
