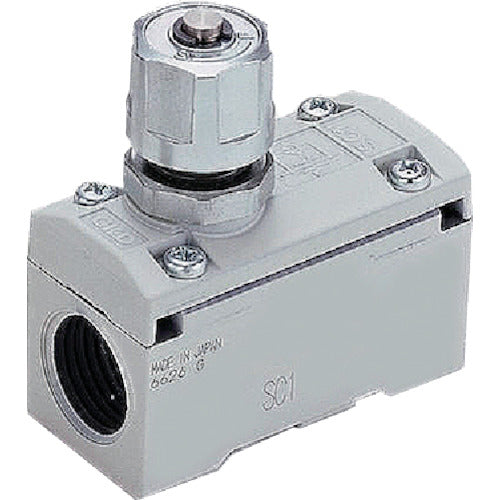

Catalog number: SC1-15 Features: ● Medium-diameter in-line speed controller. ● Can be installed from either the bottom or the side. ● Comes with an adjustment knob to prevent it from falling off. Applications: ● For adjusting the speed of air cylinders. Specifications: Connection diameter: Rc1/2 Cylinder side connection diameter: Rc1/2 Operating pressure (MPa): 0.05-1.0 Fluid: Compressed air Fluid temperature (℃): 5-60 Type: Medium diameter type Shape: Inline (threaded) Ambient temperature: 0-60℃ (no freezing) Connection type: Inline (threaded) Flow type: Standard flow Free flow rate: 2900L/min (effective cross-sectional area: 43mm2) Control flow rate: 2400L/min (effective cross-sectional area: 36mm2) Applicable cylinder tube inner diameter: φ80-160mm (reference) Needle rotation number: 10 times Caution: Depending on the air quality (dew point), freezing may occur due to adiabatic expansion. Flow rate is the atmospheric pressure equivalent value at a pressure of 0.5MPa.
