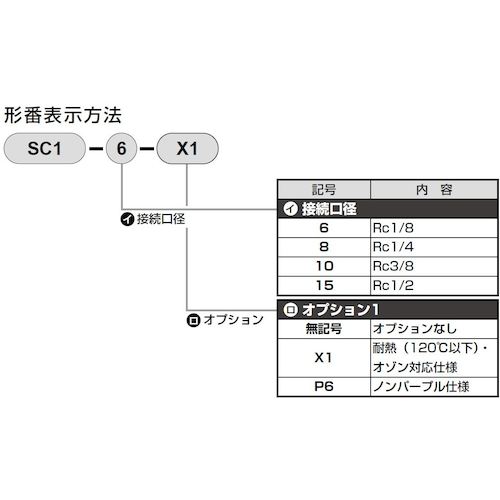

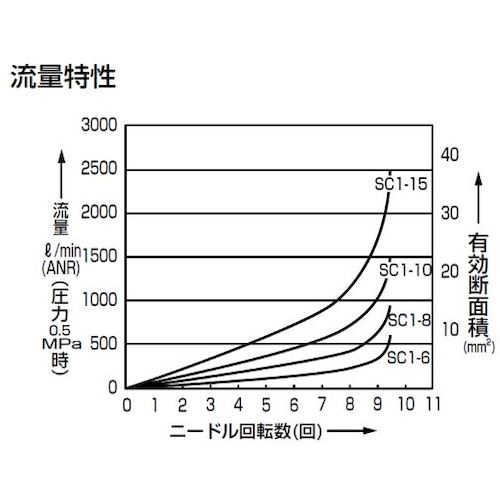

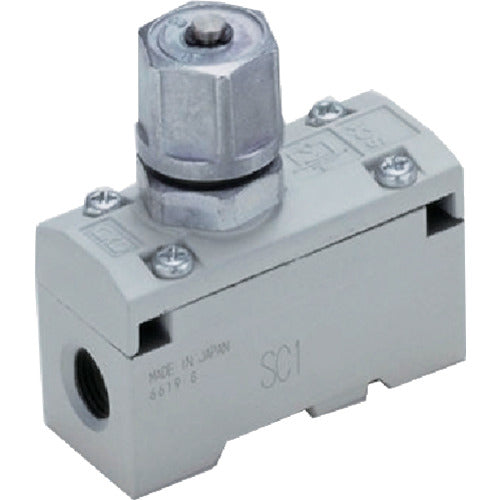

Catalog number: SC1-6 Features: * Medium-diameter in-line speed controller. * Adjustment knob has anti-slip feature. * Can be installed from either the bottom or side. Applications: * For adjusting the speed of air cylinders. Specifications: Connection diameter: Rc1/8 Cylinder side connection diameter: Rc1/8 Operating pressure (MPa): 0.05-1.0 Fluid: Compressed air Fluid temperature (℃): 5-60 Type: Medium diameter type Shape: Inline (threaded) Ambient temperature: 0-60℃ (no freezing) Connection type: Inline (threaded) Flow type: Standard flow Free flow rate: 730L/min (effective cross-sectional area: 11mm2) Control flow rate: 530L/min (effective cross-sectional area: 8mm2) Applicable cylinder tube inner diameter: φ20-50mm (reference) Needle rotation number: 10 times Caution: Depending on the air quality (dew point), freezing may occur due to adiabatic expansion. Flow rate is the atmospheric pressure equivalent value at a pressure of 0.5MPa.
