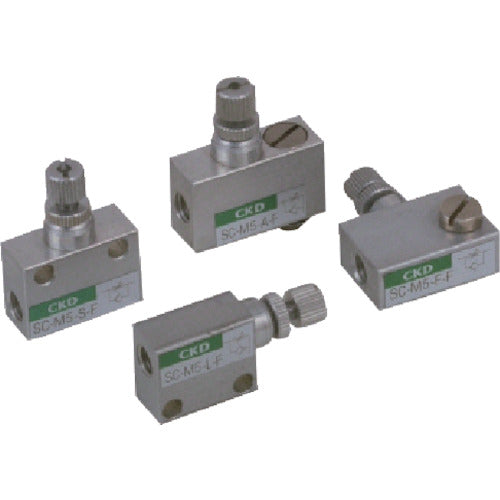

CKD Speed ​​Controller Large Diameter Type M5 x 0.8 Straight SC-M5-S 1 pc

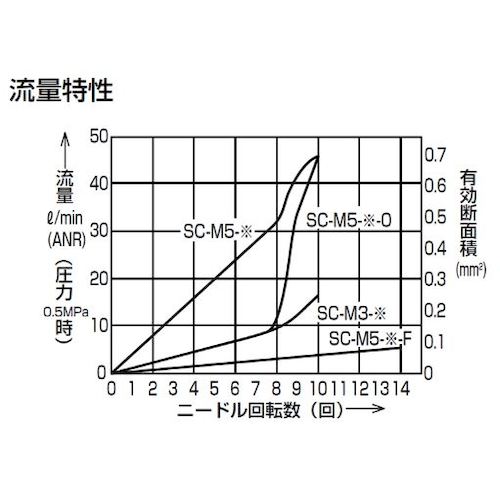

Catalog number: SC-M5-S Features: ● A compact, lightweight speed controller that allows space-saving piping. ● Flow characteristics can be selected from standard type, low speed type, and micro speed type. Applications: ● For adjusting the speed of small-diameter pneumatic cylinders. Specifications: ● Connection diameter: M5 x 0.8 ● Connection diameter cylinder side: M5 x 0.8 ● Operating pressure (MPa): 0.1 to 0.7 ● Operating fluid: Compressed air ● Fluid temperature (℃): 5 to 60 ● Type: Ultra-compact type ● Shape: Straight ● Effective cross-sectional area (［［MM2］］): 0.7 ● Controlled flow effective cross-sectional area (［［MM2］］): 0.7 ● Meter-out type ● Connection type: Threaded/in-line ● Flow type: Standard type ● Free flow flow rate: 53 L/min (effective cross-sectional area: 0.8 mm2) ● Controlled flow flow rate: 47 L/min (effective cross-sectional area: 0.7 mm2) ● Applicable cylinder tube inner diameter: φ6 to 25 mm (for reference) ● Needle rotation number: 10 times ● Ambient temperature: 0 to 60℃ Caution: ● The fluid temperature and ambient temperature must not freeze. Depending on the air quality (dew point), there is a risk of freezing due to adiabatic expansion. ●The flow rate is an atmospheric pressure equivalent value at a pressure of 0.5 MPa.
