CKD Super Compact Cylinder SSD-16-10-N 1 pc

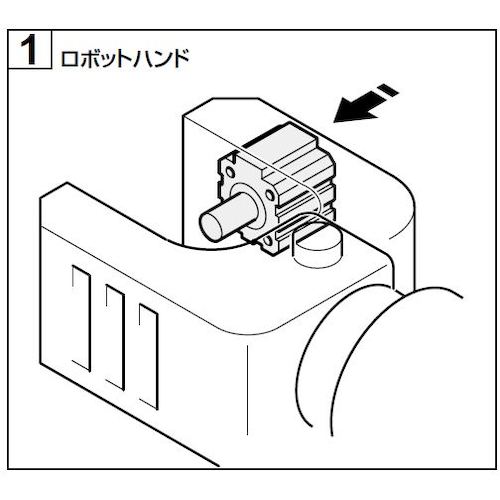

Catalog number: SSD-16-10-N Features: ●A square, space-saving cylinder with the overall length of the cylinder shortened to the ultimate extent. ●Direct installation is possible with a hexagonal socket bolt (both through-bolt and screw-in installation are possible). Applications: ●For robot hands, clamping, lifting, positioning, press-fitting, etc. Specifications: ●Tube inner diameter (mm): 16 ●Stroke (mm): 10 ●Pipe port size: M5 ●Mounting support type: Direct mounting ●Tube inner diameter (Φ): 16 ●Operating pressure range (MPa): 0.1 to 1.0 ●Connection size: M5 ●Double acting, single rod type ●Cushion: None ●Cylinder switch magnet: None ●Rod tip: Male thread ●Operating fluid: Compressed air ●Ambient temperature: -10 to 60°C (no freezing) Material/Finish: ●Body: Aluminum alloy Caution: ●Please use with care to avoid applying lateral load to the cylinder.
