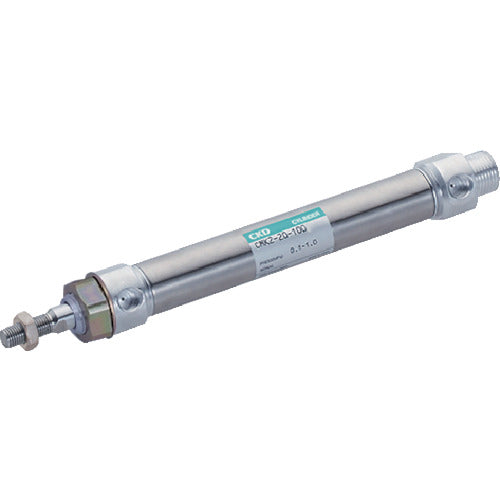

CKD Tight Cylinder without Support Bracket CMK2-00-40-75 1 pc

Catalogue number: CMK2-00-40-75 Features: ●A medium bore (φ20 to 40 mm) series of general-purpose cylinders that are oil-free, highly corrosion-resistant, and have a long lifespan. ●A crimped type cylinder with a wide variety of options, including bellows and rod material changes. ●A cylinder that uses stainless steel for the cylinder tube, improving corrosion resistance. ●A cylinder switch can be retrofitted. ●A crimped type cylinder with a wide variety of options, including bellows and rod material changes. Applications: ●For general use (requires stainless steel tubes) Specifications: ● Tube inner diameter (mm): 40 ● Stroke (mm): 75 ● Piping port diameter: Rc1/8 ● Mounting support type: Basic type ● Tube inner diameter (Φ): 40 ● Thread diameter: Rc thread ● Cylinder switch: None ● Accessories: None ● Fluid used: Compressed air ● Maximum operating pressure (MPa): 1 ● Minimum operating pressure (MPa): 0.1 ● Pressure resistance (MPa): 1.6 ● Ambient temperature (℃): -10 to 60 (but do not freeze) ● Piston speed used (mm/s): 50 to 500 ● Cushion: Rubber cushion tion● Lubrication: Not required (use turbine oil type 1 ISO VG32 when lubricating)● Allowable absorption energy (J): 0.639● Material (cylinder body): Stainless steel● Material (piston rod): Stainless steel● Operating pressure range: 0.1 to 1.0 MPa● Pressure resistance: 1.6 MPa● Cushion: Rubber● Double-acting, single-rod type● Fluid used: Compressed air● Ambient temperature: -10 to 60°C (no freezing)● Cylinder switch magnet: Yes (cylinder switch can be installed later)● Rod tip: Male thread Material/Finish:● Cylinder tube: Stainless steel● Piston packing: Nitrile rubber● Piston rod: φ20/25 (stainless steel industrial chrome plated), φ32/40 (carbon steel industrial chrome plated) Caution: ● This product is a crimped type and cannot be disassembled.
