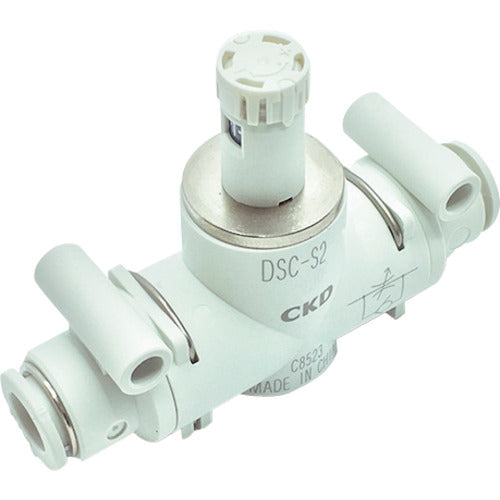

CKD Speed ​​Controller with Dial Inline Type DSC-S2-10-H88 1 pc

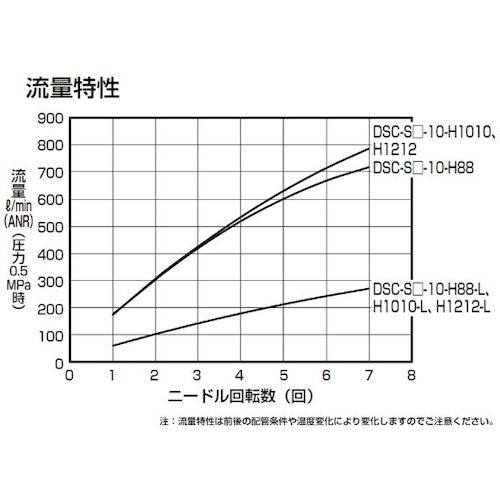

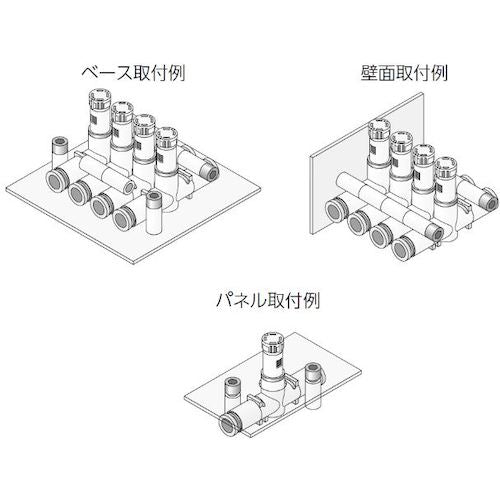

Catalog number: DSC-S2-10-H88 Features: ●The optimal design of the needle section has realized linear flow characteristics proportional to the needle rotation speed, so there is little variation in the flow rate and the cylinder speed can be easily set and changed. ●There is little variation in the flow rate, and when replacing, you can reset it by simply setting the dial to the same value. ●This greatly reduces the amount of work required and prevents adjustment errors. ●The mounting part rotates 360 degrees, so you can freely choose the mounting method, such as bottom, side, or panel mounting, and no mounting bracket is required. ●The dial display direction can be selected depending on the installation direction. ●The dial display in 0.5 increments allows for more precise quantification. ●You can feel the feedback of a "click" on your fingertips when turning the knob, and you can easily adjust the memory even in places where you cannot see it with your eyes. ●The needle is fixed using a push-lock method, which eliminates needle movement when locked and ensures a secure lock. ●The simple operation makes adjustments easy for anyone. Applications: ●For adjusting the speed of pneumatic cylinders (speed controllers) and vacuum breaking. Specifications: ●Compatible tube outer diameter D (mm): 8 ●Operating pressure (MPa): 0.1 to 1.0 ●Operating fluid: Compressed air ●Fluid temperature (℃): 5 to 60 (but do not freeze) ●Pressure resistance (MPa): 1.5 ●Ambient temperature (℃): 0 to 60 ●Dial orientation: IN/OUT direction ●Body size: 3/8 thread equivalent ●Connection type: Inline ●Flow type: Standard flow rate ●Free flow flow rate: 900 L/min (effective cross-sectional area: 13.5 mm2) ●Controlled flow flow rate: 710 L/min (effective cross-sectional area: 10.5 mm2) ●Reference applicable cylinder tube inner diameter (mm): φ32 to φ80 ●Needle rotation number: 1 to 7 times Material/Finish: ●Resin part: Polybutylene terephthalate, polyacetal ●Metal part: Brass, stainless steel ●Gasket part: Nitrile rubber, hydrogenated nitrile rubber Caution: ●Fluid temperature/ambient temperature: Do not freeze. *Please note that depending on the air quality (dew point), adiabatic expansion may cause freezing. *Flow rate is the atmospheric pressure converted value at a pressure of 0.5 MPa. *All brass parts are electroless nickel plated.
