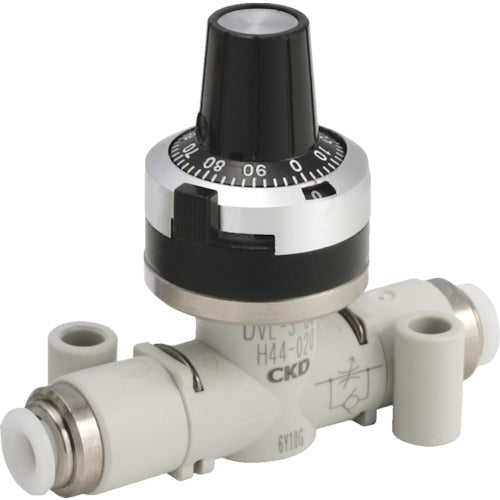

CKD Dial Needle Valve DVL Series DVL-S-06-H66-160 1 pc

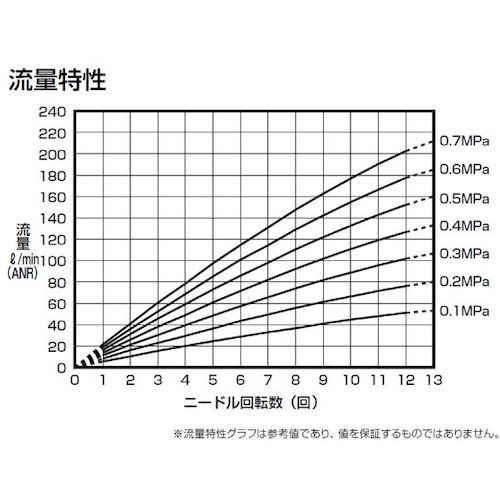

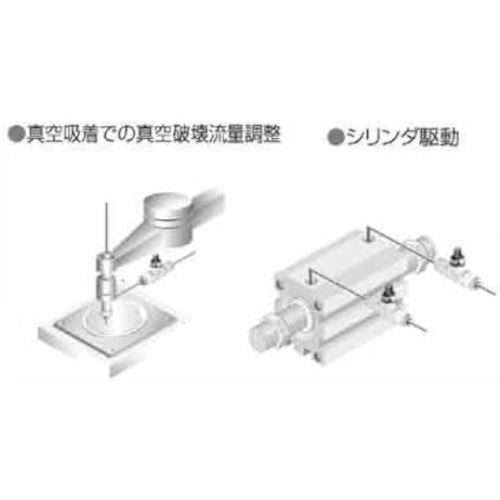

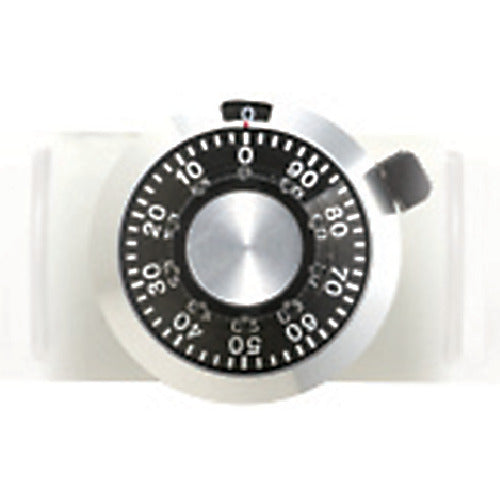

Catalog number: DVL-S-06-H66-160 Features: ● A rotary needle valve with linear flow characteristics is used. ● The number of revolutions is displayed numerically on a dial, allowing anyone to easily and reliably control the cylinder speed and adjust various flow rates. ● Linear flow characteristics proportional to the needle rotation speed are obtained, and the needle rotation speed can be displayed numerically on a dial. ● Anyone can easily adjust the numerical values ​​and it is accurate. ● High reproducibility prevents adjustment errors. ● Adjustments are quick, and the labor hours for changing setups and other tasks can be significantly reduced. ● Numerical management of the flow rate can be easily done because it can be visually checked, and the dial display makes it easy to understand at a glance. ● It is possible to quantify the work manual. ● The needle is easily fixed with a sliding lock lever, making adjustment work easy. ● The mounting position is free and the mounting part rotates 360°, so the mounting and installation method can be freely selected, such as bottom, side, and panel mounting, and no mounting bracket is required. Applications: ● For speed adjustment of pneumatic cylinders (speed controller) and vacuum burst. ● For adjusting the vacuum burst flow rate of small electronic components. ●For pressure and tension control. Specifications: ●Applicable tube outer diameter D (mm): 6 ●Applicable tube outer diameter (mm): 6 ●Operating pressure (MPa): 0.1 to 1.0 ●Operating fluid: Compressed air ●Fluid temperature (℃): 5 to 60 (but not frozen) ●Ambient temperature (℃): 0 to 60 ●Needle control range (rotations): 1 to 12 ●Free flow/flow rate (L/min (ANR)): 300 ●Free flow/effective cross-sectional area ([[MM2]]): 4.5 ●Controlled flow/flow rate (L/min (ANR)): 160 ●Controlled flow/effective cross-sectional area ([[MM2]]): 2.4 ●Operating fluid: Compressed air ●Connection type: Inline ●Fluid temperature: 5 to 60℃ ●Ambient temperature: 0 to 60℃ ●Operating pressure: 0.1 to 1.0MPa ●One-touch lock Caution: ●The fluid temperature and ambient temperature must not freeze. Depending on the air quality (dew point), there is a risk of freezing due to adiabatic expansion. ●The flow rate is an atmospheric pressure converted value at a pressure of 0.5 MPa. ●The flow rate of the flow rate type indicates the guideline flow rate at 0.5 MPa. ●The minimum operating pressure is limited to the free flow direction, and vacuum suction (up to -100 kPa) is possible. (Needle control is not possible)
