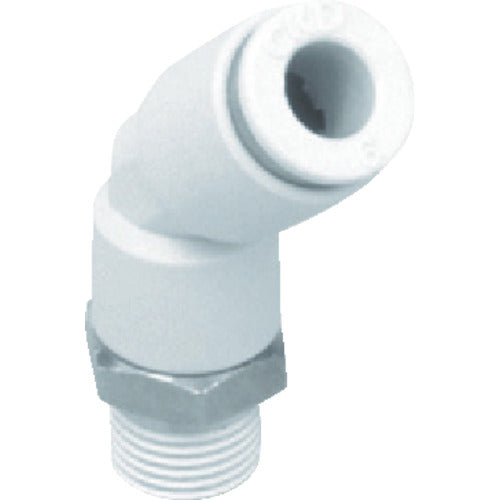

CKD Tube Fitting New Joint Elbow Type Compatible Tube Outer Diameter 10mm Connection Port Size R1/2 GWL10-15-45 1 pc

Catalog number: GWL10-15-45 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant coating on threaded parts as standard Application: ●Single-ended elbow tube + male thread Specifications: ●Applicable tube outer diameter D (mm): 10 ●Connection port size: R1/2 ●Hexagonal width (mm): 22 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Compressed air ●Operating pressure range: -100kPa to 1.0MPa ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
