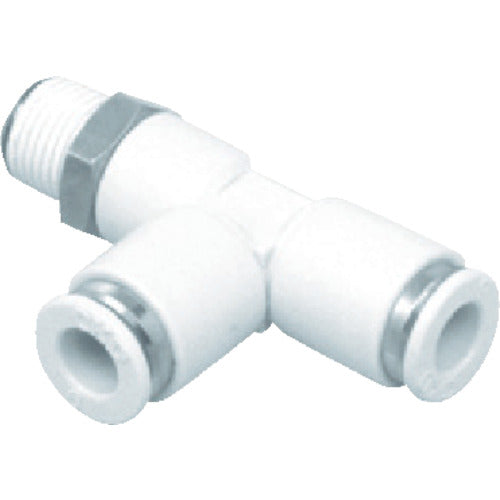

CKD Tube Fitting New Joint Tee Type Compatible Tube Outer Diameter 12mm Connection Port Size R1/4 GWT12-8-D 1 pc

Catalog number: GWT12-8-D Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threaded parts as standard Applications: ●D-type tee tube + male thread Specifications: ●Applicable tube outer diameter D (mm): 12 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Connection port size: R1/4 ●Fluid temperature (℃): -10 to 60 (no freezing) ●Hexagonal face size (mm): 19 ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Compressed air ●Operating pressure range: -100kPa to 1.0MPa ●Y-type plug + tube
