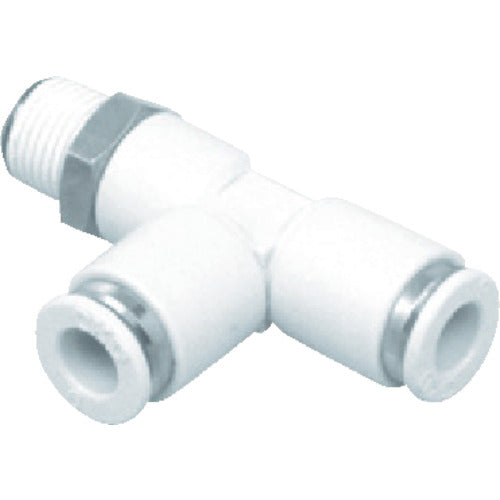

CKD Tube Fittings New Joint Tee Type Compatible Tube Outer Diameter 8mm Connection Port Size R1/4 GWT8-8-D 1 pc

Catalogue number: GWT8-8-D Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) as standard + nickel plating on brass + sealant applied as standard to threaded parts Applications: ●D-shaped tee tube + male thread Specifications: ●Applicable tube outer diameter D (mm): 8 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Connection port size: R1/4 ●Fluid temperature (℃): -10 to 60 (no freezing) ●Hexagonal face size (mm): 14 ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Compressed air ●Operating pressure range: -100kPa to 1.0MPa ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
