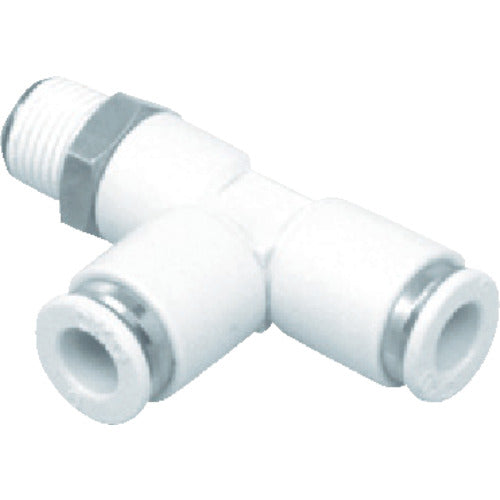

CKD Tube Fittings New Joint Tee Type Compatible Tube Outer Diameter 8mm Connection Port Size R1/8 GWT8-6-D 1 Piece

Catalog number: GWT8-6-D Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threads as standard Applications: ●D-shaped tee tube + male thread Specifications: ●Applicable tube outer diameter D (mm): 8 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Connection port size: R1/8 ●Fluid temperature (℃): -10 to 60 (no freezing) ●Hexagonal face size (mm): 14 ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Compressed air ●Operating pressure range: -100kPa to 1.0MPa ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
