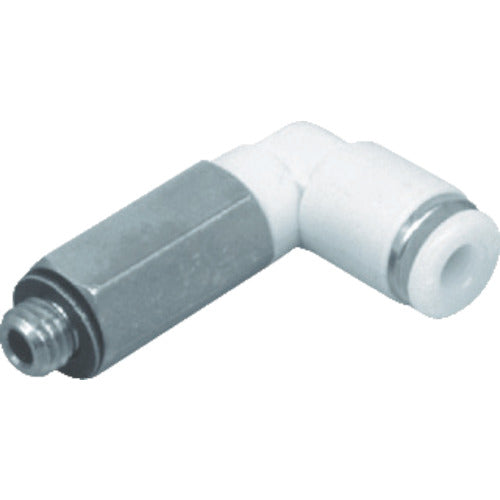

CKD Tube Fittings New Joint Mini Type Long Elbow Type Applicable Tube Outer Diameter 3.2mm Connection Port Size M5 x 0.8 GWJL3-M5-L 1 Piece

Catalog number: GWJL3-M5-L Features: ●Space-saving type with a compact body size. Applications: ●One-way long elbow tube + male thread Specifications: ●Applicable tube outer diameter D (mm): 3.2 ●Connection port size: M5 x 0.8 ●Hexagonal face size (mm): 8 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Maximum operating pressure: 1.0MPa ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
