CKD(株)

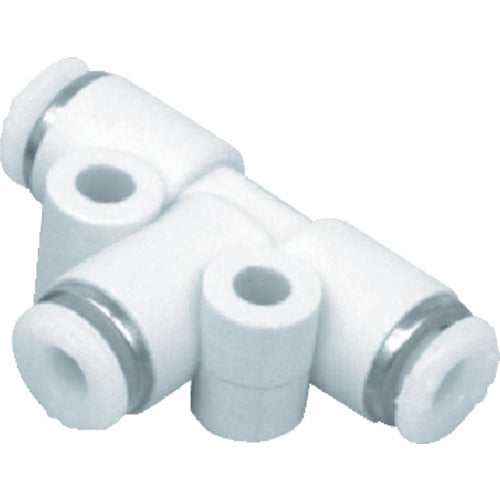

CKD Tube Fittings New Joint Mini Type Double-ended Tee Type Compatible Tube Outer Diameter 3.2mm Connection Port Size R1/8 GWJT3-6 1 pc
CKD Tube Fittings New Joint Mini Type Double-ended Tee Type Compatible Tube Outer Diameter 3.2mm Connection Port Size R1/8 GWJT3-6 1 pc
Regular price
¥472
Regular price
Sale price
¥472
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: GWJT3-6 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) as standard + nickel plating on brass + sealant applied as standard to threaded parts Applications: ●Straight tube with one end + male thread Specifications: ●Applicable tube outer diameter D (mm): 3.2 ●Connection port size: R1/8 ●Hexagonal width (mm): 10 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Maximum operating pressure: 1.0MPa ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
