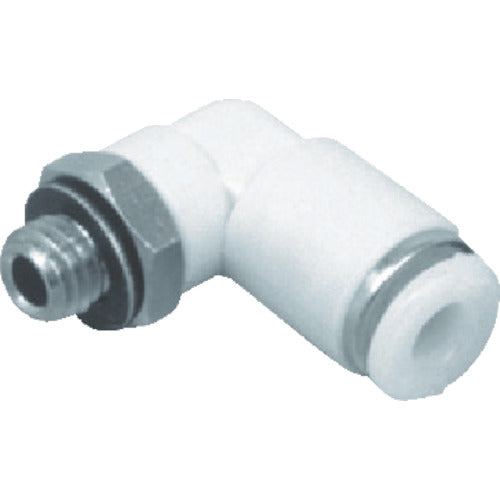

CKD Tube Fitting New Joint Mini Type Single Elbow Type Compatible Tube Outer Diameter 6mm Connection Port Size M5 x 0.8 GWJL6-M5 1 pc

Catalog number: GWJL6-M5 Features: ●Space-saving type with a compact body size. Applications: ●One-way elbow tube + male thread Specifications: ●Applicable tube outer diameter D (mm): 6 ●Connection port size: M5 x 0.8 ●Hexagonal face size (mm): 10 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Operating pressure range: -100kPa to 1.0MPa ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
