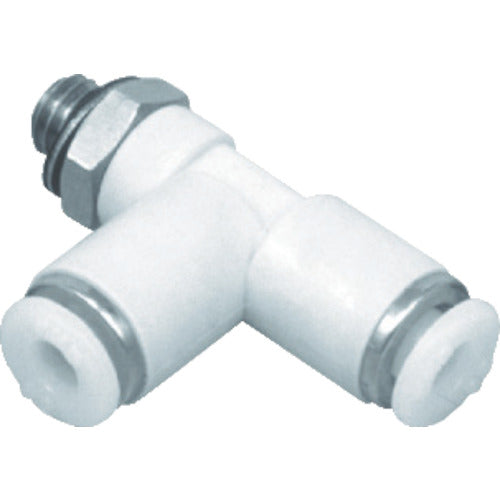

CKD Tube Fittings New Joint Mini Type D-Shaped Tee Type Compatible Tube Outer Diameter 3.2mm Connection Port Size M5 x 0.8 GWJT3-M5-D 1 Piece

Catalog number: GWJT3-M5-D Features: ● Maximum operating pressure: 1.0MPa ● Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threaded section as standard Applications: ● One-way straight tube + male thread Specifications: ● Applicable tube outer diameter D (mm): 3.2 x 3.2 ● Connection port size: M5 x 0.8 ● Hexagonal width (mm): 8 ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): -10 to 60 (no freezing) ● Fluid used: Compressed air ● Fluid temperature (℃): -10 to 60℃ (no freezing) ● Fluid temperature (℃): -10 to 60℃ (no freezing) ● Y-shaped plug + tube Material/Finish: ● Body: Brass (electroless nickel plating) + Polybutylene terephthalate (PBT) ● Sealing rubber: Nitrile rubber
