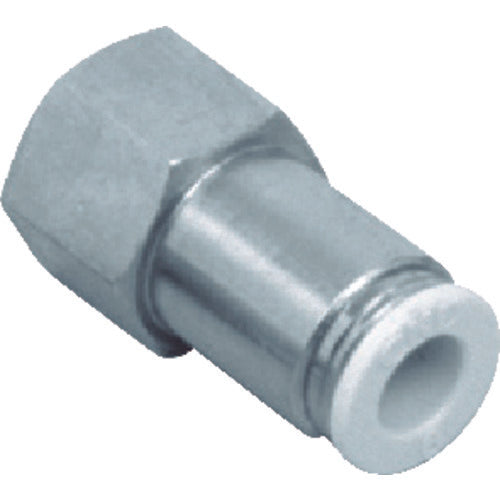

CKD Tube Fitting New Joint Straight Type Suitable Tube Outer Diameter 4mm Connection Diameter Rc1/8 GWS4-6-M 1 pc

Catalog number: GWS4-6-M Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threads as standard Application: ●Bulkhead female Specifications: ●Compatible tube outer diameter D (mm): 4 ●Connection port size: Rc1/8 ●Hexagonal face size (mm): 12 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Operating pressure range: -100kPa to 1.0MPa ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
