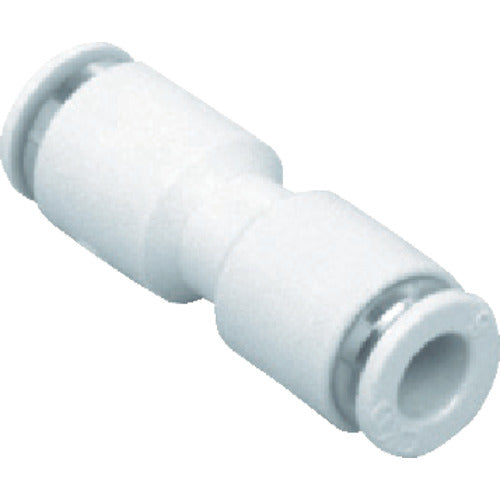

CKD Tube Fitting New Joint Straight Type Suitable for Tube Outer Diameter 8mm/10mm GWS810-0 1 pc

Catalog number: GWS810-0 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) as standard + nickel plating on brass + sealant applied as standard to threaded parts Applications: ●Bulkhead (partition wall) Specifications: ●Compatible tube outer diameter (mm): 8 x 10 ●Maximum operating pressure (MPa): 1.0 ●Fluid temperature (℃): -10 to 60 (no freezing) ●Total length (mm): 45 ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Compressed air ●Compatible tube outer diameter D2 (mm): 10 ●Compatible tube outer diameter D1 (mm): 8 ●Maximum operating pressure: 1.0MPa ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
