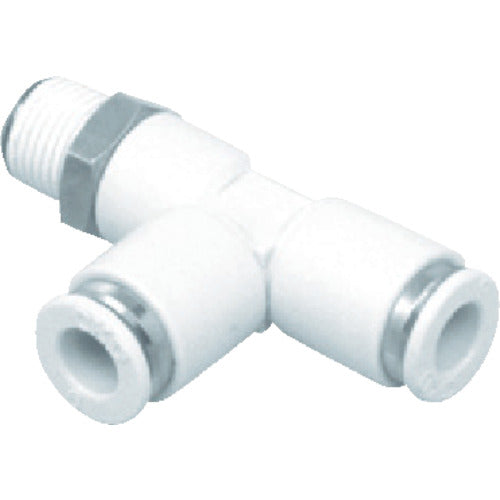

CKD Tube Fitting New Joint Tee Type Compatible Tube Outer Diameter 6mm Connection Port Size M5 GWT6-M5-D 1 Piece

Catalog number: GWT6-M5-D Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant coating on threaded parts as standard Applications: ●D-shaped tee tube + male thread Specifications: ●Applicable tube outer diameter D (mm): 6 ●Connection port size: M5 x 0.8 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
