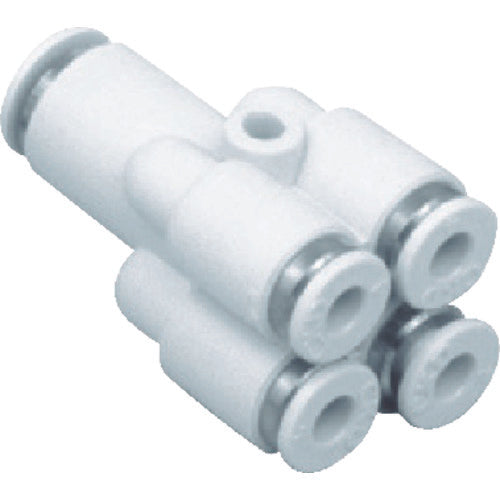

CKD Tube Fitting New Joint Double Y-Type Compatible Tube Outer Diameter 6mm/4mm GWWY64-0 1 pc

Catalog number: GWWY64-0 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threads as standard Applications: ●Tube-shaped tube Specifications: ●Compatible tube outer diameter D (mm): 6 x 4 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Compatible tube outer diameter D2 (mm): 6 ●Compatible tube outer diameter D1 (mm): 4 ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
