CKD Digital Pressure Sensor PPX-R01N-6M 1 piece

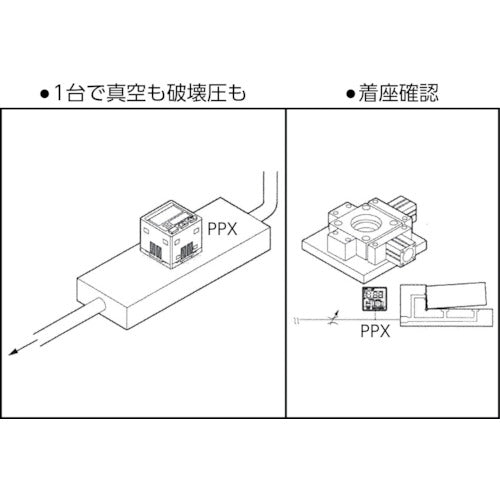

Catalog number: PPX-R01N-6M Features: *Digital pressure sensor that complies with the CE mark and RoHS directive. *Twin display is possible, allowing the "current value" and "set value" to be displayed simultaneously. *Digital display improves visibility. *Includes a setting content copy function. *Detects air leaks. Applications: *Checking positive and negative pressure. *Checking seating. *Measurement of pressure, air leaks, ON/OFF switch functions, etc. Specifications: ● Pressure range: -100.0 to 100.0 kPa ● Output format: 2 NPN outputs ● Connection size: R1/8, M5 female thread ● Power supply (V): DC12 to 24 V ● Power supply: DC12 to 24 V ● Pressure resistance: 500 kPa / 1.5 MPa ● Rear connection: R1/8 / M5 female thread ● Width x depth x height: 30 x 25.5 x 30 mm ● Operating pressure range: -100 to 100 kPa / -0.1 to 1 MPa ● Connector cable: 2 m
