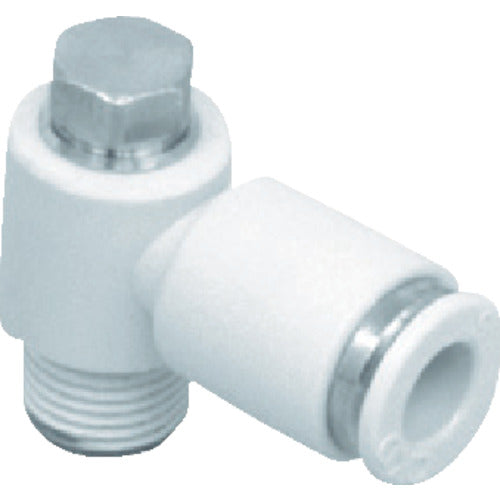

CKD New joint elbow type Applicable tube outer diameter: 10mm Connection diameter R1/2 GWL10-15-T 1 piece

Catalog number: GWL10-15-T Features: ●Flame-retardant resin (UL-94 standard V-0 equivalent) standard + nickel plating on brass + sealant coating on threaded parts as standard Applications: ●One-way turn elbow tube + male thread Specifications: ●Compatible tube outer diameter D (mm): 10 ●Connection port size: R1/2 ●Hexagonal face size (mm): 17 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60 (no freezing) ●Operating pressure range: -100kPa to 1.0MPa ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
