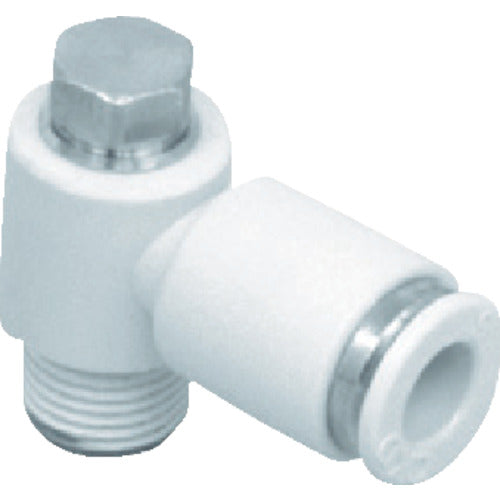

CKD New joint elbow type Applicable tube outer diameter: 8mm Connection size R1/8 GWL8-6-T 1 piece

Catalogue number: GWL8-6-T Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant coating on threaded parts as standard Applications: ●One-way turn elbow tube + male thread Specifications: ●Compatible tube outer diameter D (mm): 8 ●Connection port size: R1/8 ●Hexagonal width (mm): 10 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60 (no freezing) ●Operating pressure range: -100kPa to 1.0MPa ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
