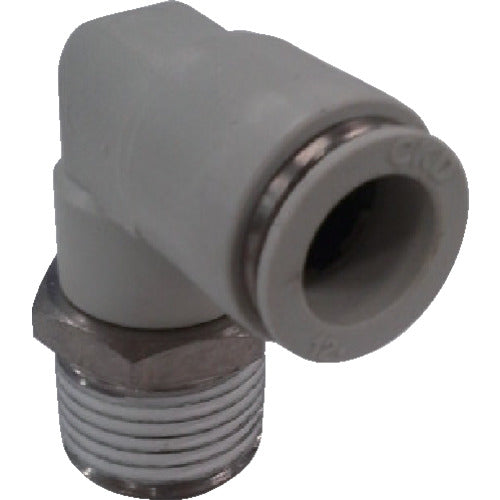

CKD New Joint Stainless Steel Type (Single-ended Elbow) ZW-L6-M5-P4 1 pc

Catalogue number: ZW-L6-M5-P4 Features: ●Body and push ring are made of flame-retardant resin. ●All metal parts are made of stainless steel as standard. Applications: ●Tube connection Specifications: ●Compatible tube outer diameter D (mm): 6 ●Connection port size: M5 x 0.8 ●Hexagonal face size (mm): 10 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Compressed air ●Fluid temperature (℃): 0 to 60 (no freezing) ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature: 0 to 60℃ (no freezing) Materials/Finish: ●Body: Stainless steel (SUS303) + Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
