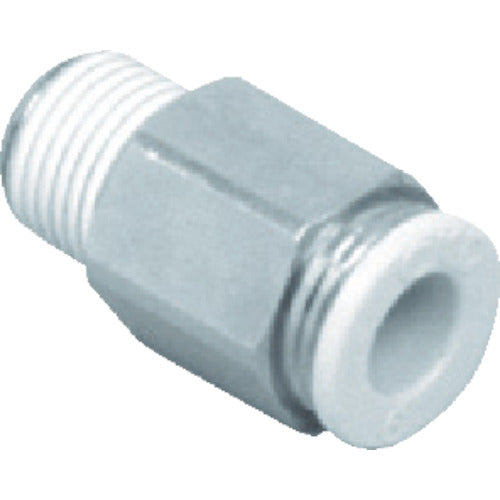

CKD New Joint Straight Type Applicable Tube Outer Diameter: 4mm Connection Port Size M5 GWS4-M5 1 pc

Catalog number: GWS4-M5 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threads as standard Application: ●Straight tube with one end + male thread Specifications: ●Compatible tube outer diameter (mm): 4 ●Connection port size: M5 x 0.8 ●Hexagonal width (mm): 10 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Total length (mm): 21.5 ●Operating fluid: Air ●Compatible tube outer diameter D (mm): 4 ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
