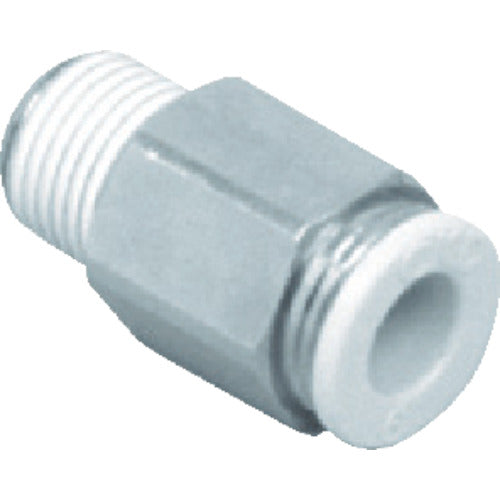

CKD New Joint Straight Type Applicable Tube Outer Diameter: 6mm Connection Port Size M5 GWS6-M5 1 pc

Catalog number: GWS6-M5 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threaded parts as standard Applications: ●Straight tube with one end + male thread Specifications: ●Compatible tube outer diameter (mm): 6 ●Connection port size: M5 x 0.8 ●Hexagonal face size (mm): 12 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Total length (mm): 23 ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Air ●Compatible tube outer diameter D (mm): 6 ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Sealing rubber: Nitrile rubber
