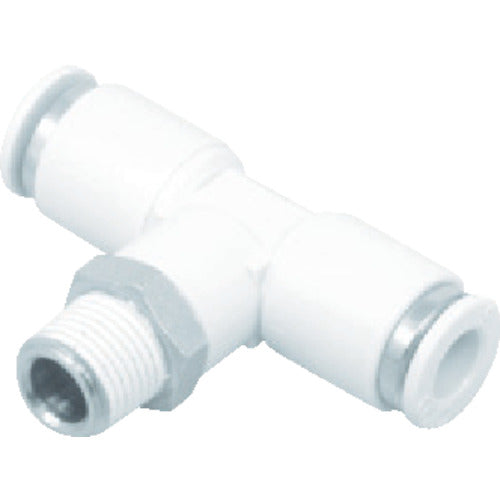

CKD New joint tee type Compatible tube outer diameter: 6mm Connection diameter R1/4 GWT6-8 1 piece

Catalog number: GWT6-8 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant coating on threaded parts as standard Applications: ●Tee tube + male thread Specifications: ●Compatible tube outer diameter D (mm): 6 x 6 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Connection port size: R1/4 ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Air ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
