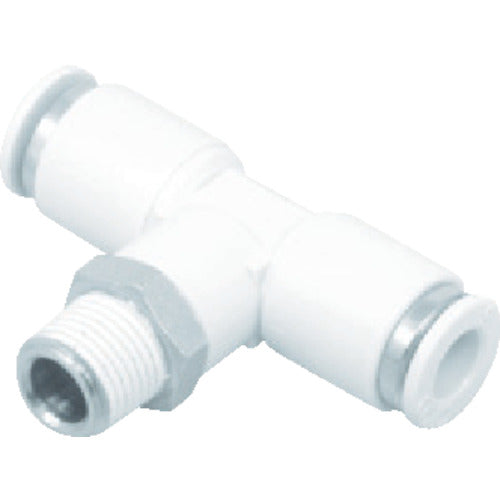

CKD New joint tee type Compatible tube outer diameter: 8mm Connection diameter R1/8 GWT8-6 1 piece

Catalog number: GWT8-6 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant coating on threads as standard Application: ●Tee tube + male thread Specifications: ●Compatible tube outer diameter D (mm): 8 x 8 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Connection port size: R1/8 ●Fluid temperature (℃): -10℃ to 60℃ ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Air ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
