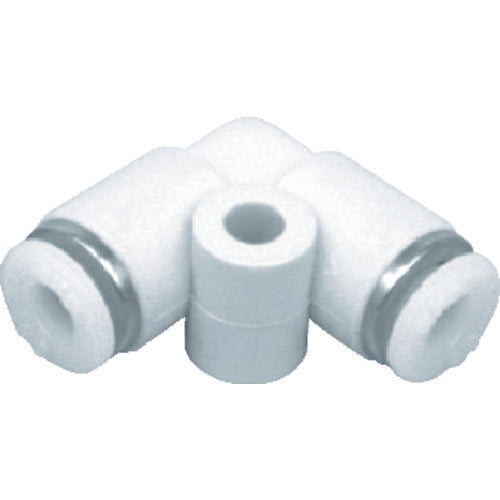

CKD New Joint Mini Type Elbow Type GWJL3-0 1 pc

Catalog number: GWJL3-0 Features: ●Space-saving type with a small body size. Applications: ●Tube 2-way Specifications: ●Applicable tube outer diameter D (mm): 3.2 x 3.2 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60 (no freezing) ●Operating pressure range: -100kPa to 1.0MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
