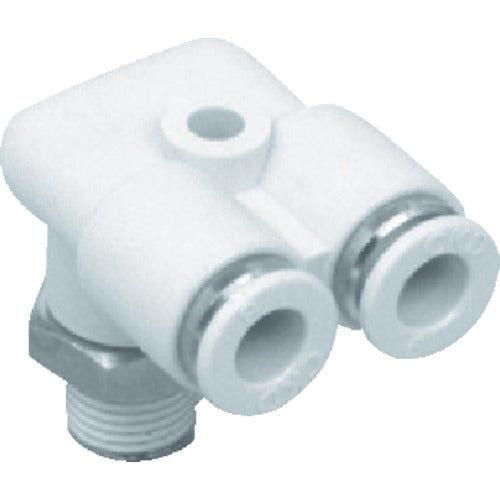

CKD New Joint FY Type Compatible Tube Outer Diameter: 10mm Connection Port Size R3/8 GWFY10-10 1 pc

Catalog number: GWFY10-10 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) as standard + nickel plating on brass + sealant coating on threaded parts as standard Applications: ●2-way tube branch + male thread Specifications: ●Compatible tube outer diameter D (mm): 10 x 10 ●Connection port size: R3/8 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Compressed air ●Fluid temperature (℃): -10℃ to 60℃ ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + Polybutylene terephthalate (PBT) ●Sealing rubber: Nitrile rubber
