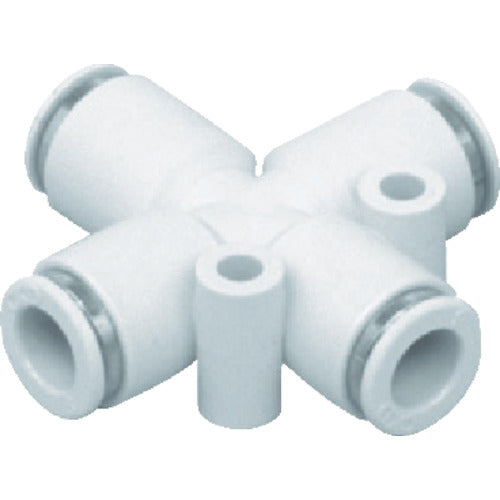

CKD New Joint Cross Type GWCR12-0 1 pc

Catalog number: GWCR12-0 Features: ●Flame-retardant resin (UL-94 standard V-0 equivalent) standard Applications: ●Cross shape branches tubes in 4 directions Specifications: ●Compatible tube outer diameter D (mm): 12 x 12 x 12 x 12 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60 (no freezing) ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
