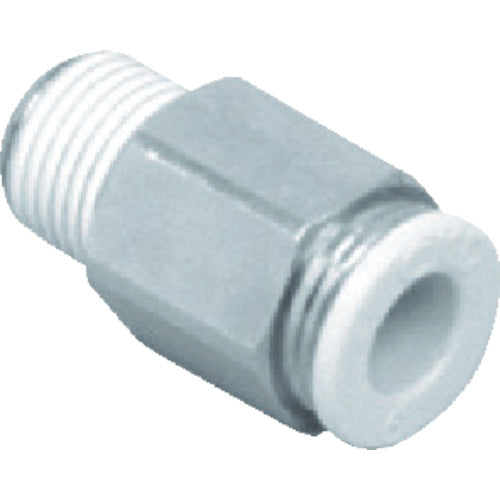

CKD New Joint Straight Type Applicable Tube Outer Diameter: 12mm Connection Port Size R3/8 GWS12-10 1 pc

Catalog number: GWS12-10 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threads as standard Application: ●Straight tube with one end + male thread Specifications: ●Compatible tube outer diameter (mm): 12 ●Connection port size: R3/8 ●Hexagonal width (mm): 19 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Fluid temperature (℃): -10℃ to 60℃ ●Total length (mm): 30.5 ●Operating fluid: Air ●Compatible tube outer diameter D (mm): 12 ●Operating pressure range: -100kPa to 1.0MPa ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
