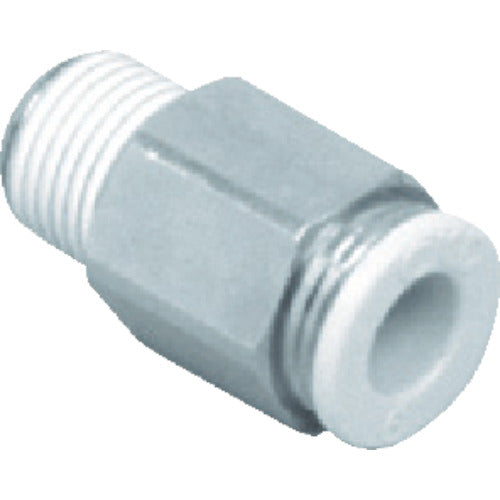

CKD New Joint Straight Type Applicable Tube Outer Diameter: 16mm Connection Port Size R3/8 GWS16-10 1 pc

Catalogue number: GWS16-10 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) as standard + nickel plating on brass + sealant applied as standard to threaded parts Applications: ●Straight tube with one end + male thread Specifications: ●Compatible tube outer diameter (mm): 16 ●Connection port size: R3/8 ●Hexagonal face size (mm): 24 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Fluid temperature (℃): -10℃ to 60℃ ●Total length (mm): 42 ●Operating fluid: Air ●Compatible tube outer diameter D (mm): 16 ●Operating pressure range: -100kPa to 1.0MPa ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
