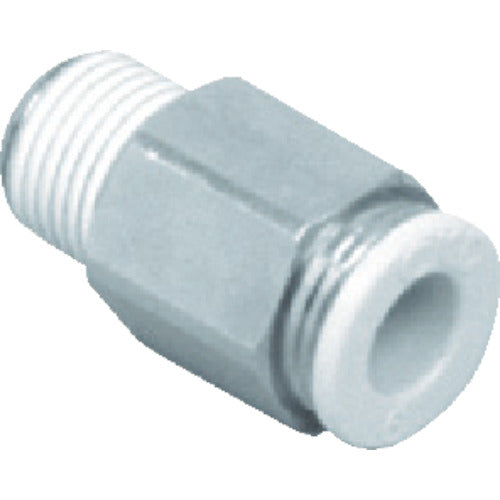

CKD New Joint Straight Type Applicable Tube Outer Diameter: 4mm Connection Port Size R1/4 GWS4-8 1 pc

Catalogue number: GWS4-8 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threaded parts as standard Applications: ●Straight tube with one end + male thread Specifications: ●Compatible tube outer diameter (mm): 4 ●Connection port size: R1/4 ●Hexagonal face size (mm): 14 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Total length (mm): 19.5 ●Operating fluid: Air ●Compatible tube outer diameter D (mm): 4 ●Operating pressure range: -100kPa to 1.0MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
