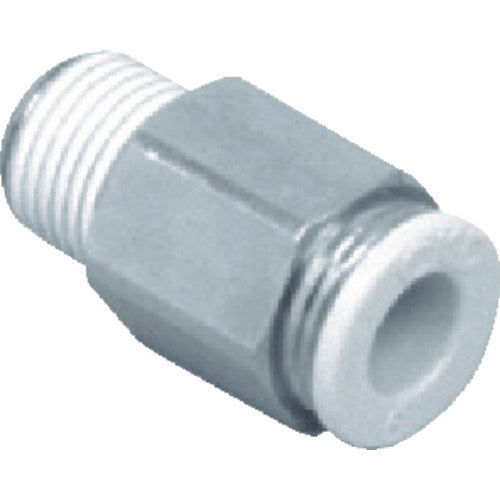

CKD New Joint Straight Type Applicable Tube Outer Diameter: 4mm Connection Port Size R1/8 GWS4-6 1 pc

Catalogue number: GWS4-6 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant coating on threaded parts as standard Application: ●Straight tube with one end + male thread Specifications: ●Compatible tube outer diameter (mm): 4 ●Connection port size: R1/8 ●Hexagonal face size (mm): 10 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Total length (mm): 20.5 ●Operating fluid: Air ●Compatible tube outer diameter D (mm): 4 ●Operating pressure range: -100kPa to 1.0MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Sealing rubber: Nitrile rubber
