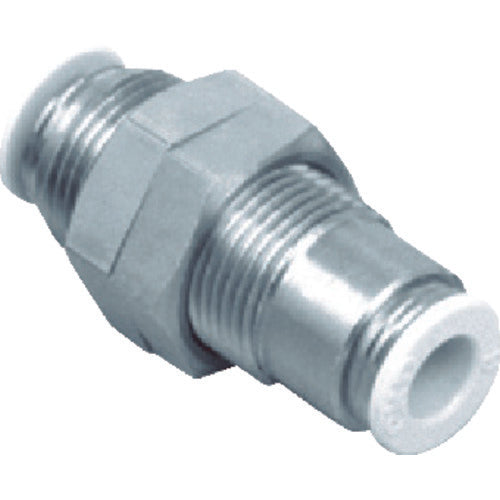

CKD New Joint Straight Type Applicable Tube Outer Diameter: 4mm GWS4-0-X 1 pc

Catalog number: GWS4-0-X Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) as standard + nickel plating on brass + sealant applied as standard to threaded parts Applications: ●Bulkhead (partition wall) Specifications: ●Compatible tube outer diameter (mm): 4 ●Connection port size: φ4 one-touch fitting ●Hexagonal face size (mm): 14 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Total length (mm): 33 ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Air ●Compatible tube outer diameter D (mm): 4 x 4 ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
