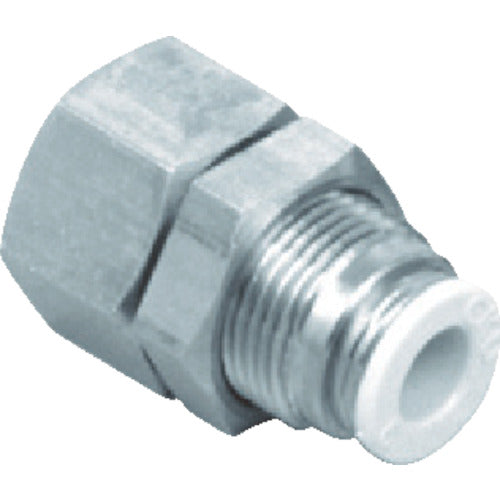

CKD New Joint Straight Type Applicable Tube Outer Diameter: 8mm Connection Diameter Rc1/4 GWS8-8-E 1 pc

Catalog number: GWS8-8-E Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threads as standard Application: ●Bulkhead female Specifications: ●Compatible tube outer diameter D (mm): 8 ●Connection port size: Rc1/4 ●Hexagonal face size (mm): 19 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Fluid temperature (℃): -10℃ to 60℃ ●Total length (mm): 31.5 ●Operating fluid: Compressed air ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
