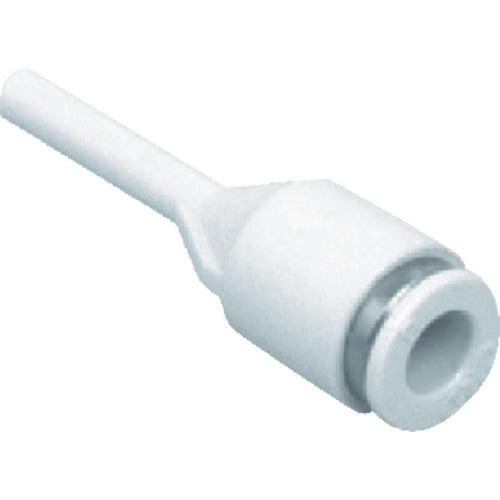

CKD New Joint Straight Type Compatible Tube Outer Diameter: 8mm/12mm GWS8-12P 1 pc

Catalog number: GWS8-12P Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threads as standard Applications: ●Plug reducer Specifications: ●Compatible tube outer diameter D1 (mm): 8 ●Compatible tube outer diameter D2 (mm): 12 ●Operating fluid: Compressed air ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100 kPa to 1.0 MPa ●Fluid temperature (℃): -10 to 60 (no freezing) ●Connection joint diameter (mm): 12 ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
