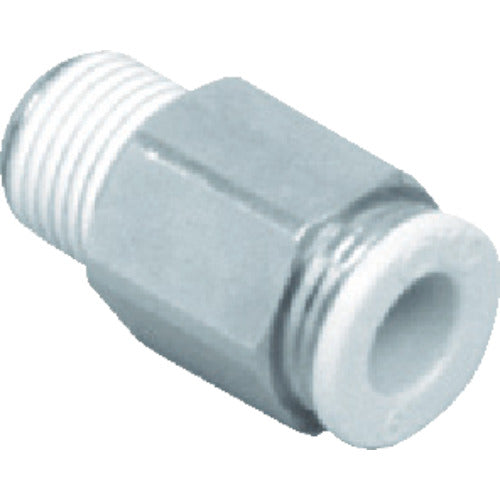

CKD New Joint Straight Type (1 bag = 1 piece) GWS6-6 1 piece

Catalogue number: GWS6-6 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threaded parts as standard Applications: ●Straight tube with one end + male thread Specifications: ●Compatible tube outer diameter (mm): 6 ●Connection port size: R1/8 ●Hexagonal width (mm): 12 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Total length (mm): 23 ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Air ●Compatible tube outer diameter D (mm): 6 ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Sealing rubber: Nitrile rubber
