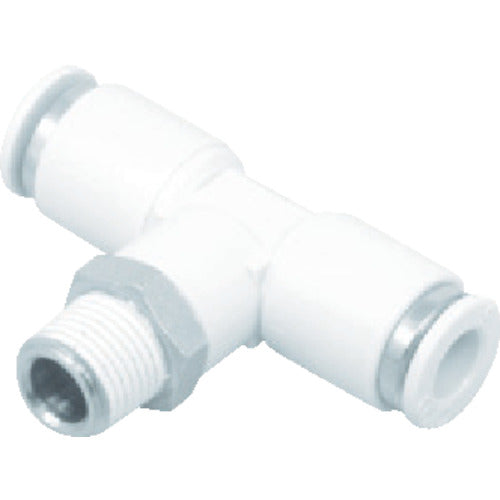

CKD New Joint Tee Type Compatible Tube Outer Diameter: 6mm Connection Port Size M5 GWT6-M5 1 pc

Catalog number: GWT6-M5 Features: ●Flame-retardant resin (UL-94 standard V-0 equivalent) standard + nickel plating on brass + sealant coating on threaded parts as standard Applications: ●Tee tube + male thread Specifications: ●Compatible tube outer diameter D (mm): 6 x 6 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Connection port size: M5 x 0.8 ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Air ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
