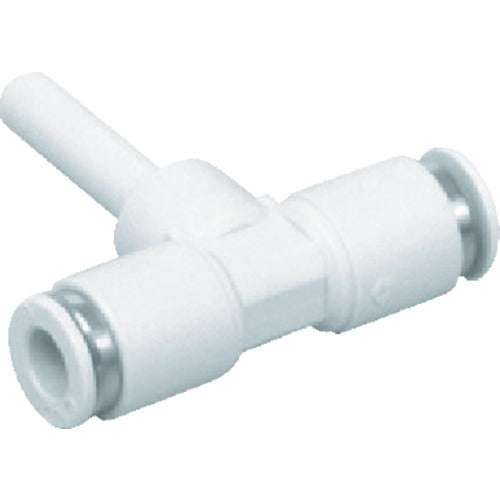

CKD New Joint C-type Plug GWP1012-C 1 pc

Catalog number: GWP1012-C Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threads as standard ●●Connection joint diameter (mm): Application: ●C-type plug + tube Specifications: ●Compatible tube outer diameter D1 (mm): 10 x 10 ●Maximum operating pressure (MPa): 1 ●Compatible tube outer diameter D2 (mm): 12 ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Compressed air ●Fluid temperature (℃): -10℃ to 60℃ ●Connection joint diameter (mm): 12 ●Y-type plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
