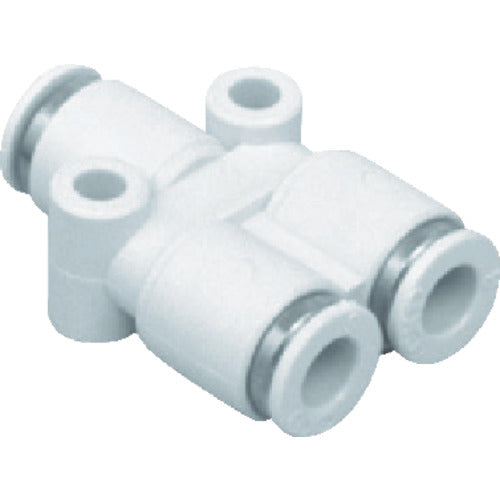

CKD New Joint Y-Shaped Tee Type Compatible Tube Outer Diameter: 8mm/8mm GWY88-0 1 pc

Catalog number: GWY88-0 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threads as standard Applications: ●Tube-shaped tube Specifications: ●Compatible tube outer diameter D (mm): 8 x 8 ●Compatible tube outer diameter D1 (mm): 8 ●Compatible tube outer diameter D2 (mm): 8 x 8 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Air ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
