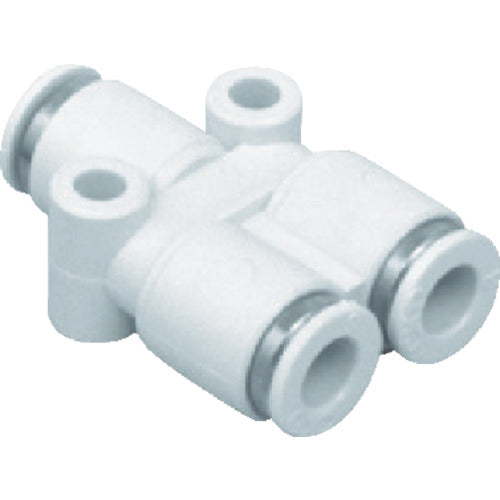

CKD New Joint Y-Shaped Cheese Type (1 bag = 1 piece) GWY66-0 1 piece

Catalog number: GWY66-0 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threads as standard Applications: ●Tube-shaped tube Specifications: ●Compatible tube outer diameter D (mm): 6 x 6 ●Compatible tube outer diameter D1 (mm): 6 ●Compatible tube outer diameter D2 (mm): 6 x 6 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Air ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
