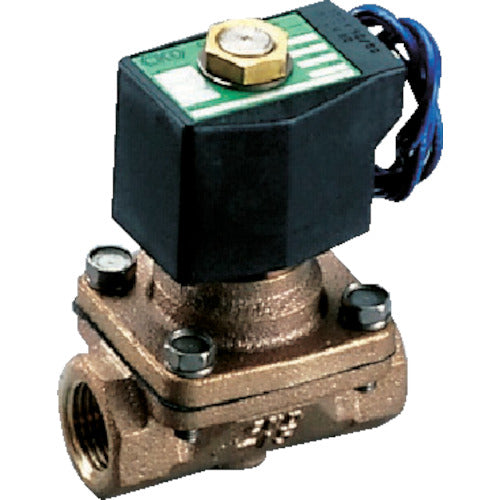

CKD Pilot kick type 2-port solenoid valve (Multi-rex valve) 46 [MM2] / Effective cross-sectional area ADK11-8A-02C-AC200V 1 unit

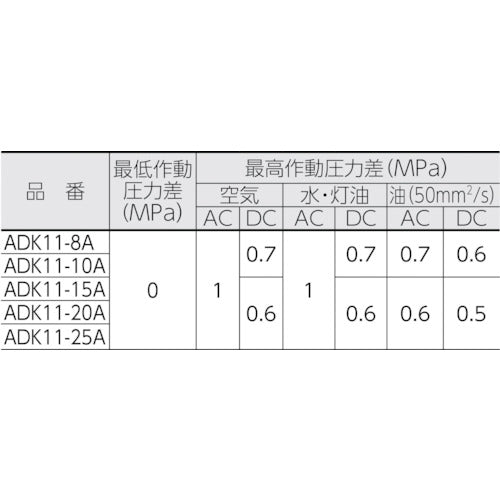

Catalog number: ADK11-8A-02C-AC200V Features: ●Multi-rex valve that controls many types of fluids such as water, air, gas, and oil. Applications: ●ON/OFF of many types of fluids such as water, air, gas, and oil Specifications: ●Effective cross-sectional area (mm2): 46 ●Connection port size: Rc1/4 ●Operation method: Diaphragm drive type ●Power supply (V): AC200 ●Number of ports: 2 ●Fluids used: air, water, low vacuum, kerosene, oil (up to 60°C), etc. ●Fluid temperature (°C): -10 to 60 (no freezing) ●Operating pressure difference (MPa): 0 to 1 (air, water, kerosene), 0 to 0.7 (oil) ●Fluid temperature: -10 to 60°C (no freezing) ●Operating pressure: air 0 to 1MPa, water 0 to 1MPa Material/Finish: ●Body: bronze ●Seal: nitrile rubber ●O-ring: nitrile rubber
