CKD Pilot kick type 2-port solenoid valve (Multi-rex valve) ADK11-25A-03A-DC24V 1 unit

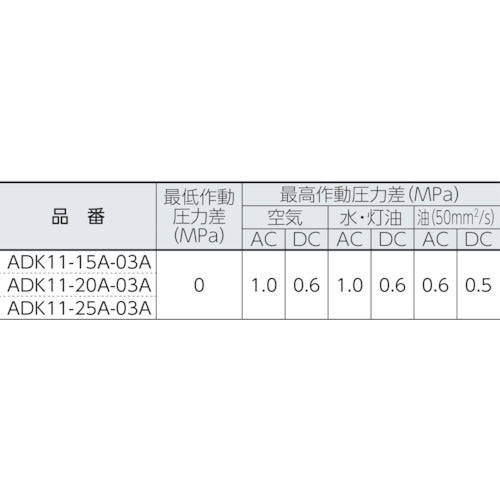

Catalog number: ADK11-25A-03A-DC24V Features: ●Multilex valve series that controls many types of fluids, including water, air, kerosene, and oil. Uses: ●For ON/OFF control of water, air, kerosene, and oil. Specifications: ●Effective cross-sectional area (mm2): 231 ●Connection diameter: Rc1 ●Operating method: Pilot kick type ●Power supply (V): DC24 ●Number of ports: 2 ●Operating pressure (MPa): 0 to 1 (operating fluid: air) ●Operating fluid: air, water, low vacuum, kerosene, oil ●Fluid temperature (℃): -10 to 60 (no freezing) ●Cv value: 12 ●Operating pressure: 0 to 0.6 MPa (operating fluid: air, water, kerosene), 0 to 0.5 MPa (oil) ●Fluid temperature: -10 to 60℃ (no freezing) ●Open frame type lead wire (equivalent to IP65): 300 mm Material/Finish: ●Body: Bronze ●Sealing material: Nitrile rubber
