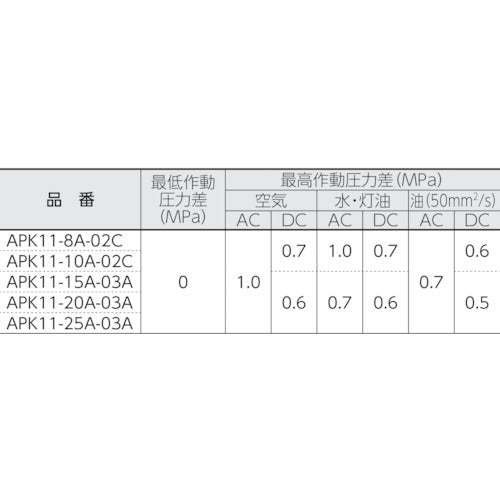

Catalog number: APK11-20A-03A-DC24V Features: ●Multi-Rex valve series for controlling many types of fluids, including water, air, kerosene, and oil. Applications: ●For ON/OFF control of water, air, kerosene, and oil Specifications: ●Effective cross-sectional area (mm2): 162 ●Connection port size: Rc3/4 ●Operation method: Piston drive ●Power supply (V): DC24 ●Number of ports: 2 ●Fluids used: air, water, low vacuum, kerosene, oil (up to 60°C), etc. ●Fluid temperature (°C): -10 to 60 (no freezing) ●Operating pressure difference (MPa): 0 to 0.6 (air, water, kerosene), 0 to 0.5 (oil) ●Fluid temperature: -10 to 60°C (no freezing) ●Open frame type lead wire (equivalent to IP65): 300mm Material/Finish: ●Body: Bronze ●Valve seal/O-ring: Nitrile rubber
