CKD Pilot kick type 2-port solenoid valve (Multi-rex valve) APK11-8A-02C-AC100V 1 unit

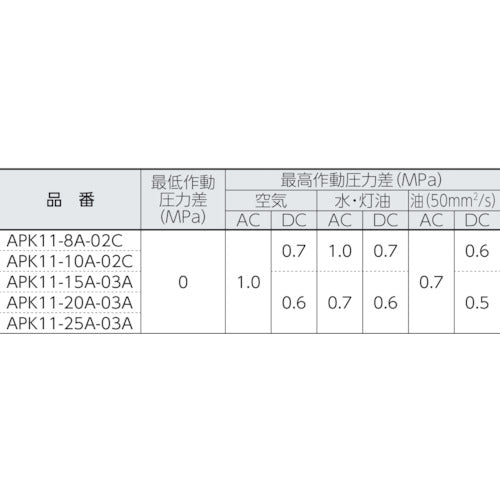

Catalog number: APK11-8A-02C-AC100V Features: ●Multilex valve series that controls many types of fluids, including water, air, kerosene, and oil. Uses: ●For ON/OFF control of water, air, kerosene, and oil. Specifications: ●Effective cross-sectional area (mm2): 47 ●Connection diameter: Rc1/4 ●Operation method: Piston drive type ●Power supply (V): AC100 ●Number of ports: 2 ●Fluids used: air, water, low vacuum, kerosene, oil (up to 60°C), etc. ●Fluid temperature (°C): -10 to 60 (no freezing) ●Sonic conductance (C [dm3/(S·bar)]): 9.4 ●Operating pressure difference (MPa): 0 to 1.0 (air, water, kerosene), 0 to 0.7 (oil) ●Fluid temperature: -10 to 60°C (no freezing) ●Lead wire: 300mm Material/Finish: ●Body: Bronze ●Valve seal/O-ring: Nitrile rubber
